PANAVISE PanaPress de precisión 502

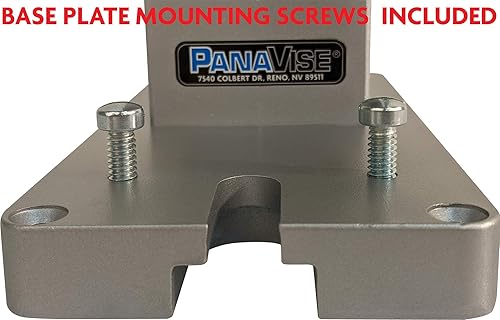

Reseña del editor Prensa de cenador, fuerza en toneladas 1/4, rango de fuerza (libras) 500, Columpio (pulg.) 24, superficie de trabajo de mesa (pulg.) 3-3/4 x 7, diámetro del yunque. Área de trabajo (pulg.) 1/2, Rango de anchos de ranura (pulg.) Hasta 1/2, máx. Altura de trabajo (pulg.) 3-3/16, Dimensiones de la Ram (pulg.) 3/4 x 3/4 x 6, fundición de zinc, carnero reversible, escariado 1/4 pulgadas. Agujero, (4) Gibs de nailon ajustables, 8 pulgadas. Brazo, (4) 1/4 pulgadas. Agujeros avellanados de montaje en la base, (2) agujeros de montaje preperforados y roscados de 1/4-20 accesorios, incluye (2) 1/4-20 x 3/4 pulgadas. Tornillos From the Manufacturer The PanaVise 502 precision PanaPress is a versatile and compact arbor press used in manufacturing, or as a repair tool. The PanaPress is used for pressing bearings, sleeves, and collars, as well as forming, and assembling small parts, broaching, and staking using its reversible rack. The ram component of the PanaVise 502 precision PanaPress is rack and pinion driven and applies up to 1/4 ton (500 lbs. / 227 kg) of pressure. A compact arbor press useful in manufacturing or as a repair tool. View larger. A rack and pinion driven ram delivers 1/4 ton of pressure right where you need it. View larger.1/4 Ton of Pressure for Industrial Tooling and Repair The 502 precision PanaPress is an arbor press composed of a 5-7/8" (149.2 mm) long ram housed within a 7" tall press body that sits on a 3-11/16" x 7" (94 mm x 177.8 mm) base. The ram is rack and pinion driven, delivering 1/4 ton (500 lbs.) of pressure along its 3/4" x 3/4" (19.1 mm x 19.1 mm) square end with the downward pull of the unit's 8" (203.2 mm) arm. The level of pressure focused on a precise spot is ideal for pressing bearings, sleeves and collars, as well as forming and assembling small parts, broaching and staking. Accuracy of the ram movement is ensured by four adjustable nylon gibs, arranged along the top face of the PanaPress, which provide strong ram control. The ram is reversible, with one end containing a 1/4" hole accurately reamed for use in optional tooling using available PanaPress accessories (sold separately). Accessories can also be mounted using the two pre-drilled and tapped 1/4"-20 holes in the base of the unit. Four 1/4" (6.3 mm) countersunk holes are provided in the base for mounting of the 502 precision PanaPress to work surfaces. Key FeaturesCompact arbor press designed for industrial manufacturing and repair tasks, including: pressing bearings, sleeves, and collars, forming and assembling small parts, broaching and stakingRack and pinion driven reversible 1/4 ton ram8" armRam arm reamed for added tooling optionsTwo pre-drilled and tapped 1/4"-20 holes aligned at the top of the base for accessory mountingBase mountable to work surfaces via for 1/4" (6.3 mm) countersunk holesSpecificationsHeight (from base to top of back): 7" (177.8 mm)Weight: 5.4 lbs. (2.5 kg)Ram Reversible: YesDimensions: 3/4" x 3/4" (19.1 mm x 19.1 mm) square and 5-7/8" (149.2 mm) longPressure: 1/4 ton (500 lbs. / 227 kg)Additional tooling option: Yes, via reamed 1/4" (6.4 mm) holeAdjustable: Yes (four nylon gibs)Arm: 8" (203.2 mm)Base footprint: 3-11/16" x 7" (94 mm x 177.8 mm)Base mounting: Four 1/4" (6.3 mm) countersunk holesAccessory mounting: Two pre-drilled and tapped 1/4"-20 holesWhat's in the Box?PanaVise 502 precision PanaPressUser's manual and warranty informationLimited Lifetime Warranty All PanaVise products are warranted against defective materials and/or workmanship to all original consumer owners from the date of original consumer purchase for the lifetime of ownership by the original consumer owner. In the event of defective materials and/or workmanship, PanaVise Products, Inc. will, without charge, repair or replace, at its option, the defective product within 60-days from the receipt of the defective product. The Warranty does not apply to damage not resulting from defective materials and/or workmanship while in the possession of the original consumer or to unreasonable use by the original consumer, which includes but is not limited to improper installation, or failure to provide reasonable and necessary maintenance. About PanaVise Founded in 1957 by tool and die maker Otto Colbert and currently headquartered in Reno, Nevada, PanaVise is a leader in work-holding products. Over the years, a natural outgrowth of this expertise has been continued development of other items which hold things securely and offer a wide range of motion. Important areas in which this has been applied include, Electronics, CCTV Camera Mounts, and Audio/Video Mounts, earning PanaVise the nickname the "the hold it anywhere you want it company."
